Micsig ATO1102 Plus 2CH, 100MHz, 1GSa/s Battery Powered Handheld Oscilloscope

Name: Micsig ATO1102 Plus 2CH, 100MHz, 1GSa/s Battery Powered Handheld Oscilloscope
SKU: ATO1102
Availability: InStock

£492.00

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: ATO1102 Category: Micsig ATO1000 Series Battery Powered Handheld Oscilloscopes

Description

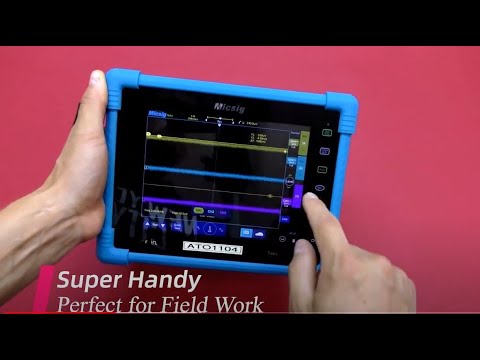

Micsig ATO1102 Battery Powered Oscilloscope

The Micsig ATO1102 is a 100MHz, 2 Channel Battery Powered Portable Handheld Tablet Oscilloscope which uses a 8″ 800×600 full touch capacitive display. This model supports Wi-Fi, LAN, HDMI, USB Host, USB Device, GND and DC Power.

Features:

2 analogue channel
100MHz bandwidth
1GSa/S real time sample rate
28Mpts memory depth
8″ full touch screen
Inside lithium battery
Integrated automotive diagnostic software
Various automotive diagnostic function : Ignition, sensor, actuators, networks, combination test and pressure test
Easy to use, convenient operation on the bench and in the field
Support APP to operate oscilloscope remotely
Support Wi-Fi to transfer waveform data
Internal 8G memory to save big waveform data

Micsig ATO1000 Oscilloscope Comparison Table

Model	Channels	Bandwidth	Max Sample Rate	Memory	Waveform Refresh Rate	Interface
ATO1102	2	100MHz	1GSa/s	28Mpts (Single Channel)	250,000 wfms/s	Wi-Fi, LAN, HDMI, USB Host, USB Device, GND, DC Power
ATO1104	4	100MHz	1GSa/s	28Mpts (Single Channel)	250,000 wfms/s	Wi-Fi, LAN, HDMI, USB Host, USB Device, GND, DC Power
